C5ISR Communications Equipment and Gear

By far, our most popular single comm push-to-talk! The Invictus Single™ comm was the initial next generation PTT designed, developed and manufactured by Atlantic Signal - based on feedback from clientele in the field. The Invictus Single™ comm push-to-talk is our next generation design of the original U94 PTT. Over 18 months in development, following feedback from operators in the field. All circuitry, bare wires, solder joints and switch lugs are sealed 100% from dust, dirt and water ingress. The blackened stainless steel MOLLE clip was designed to slide through two strips of MOLLE bands for added stability. The clip can be mounted at the 12, 3 ,6 or 9 o'clock positions and can be removed from the rear side of the PTT housing and affixed to the front to accommodate left handed shooters. Custom strain and stress reliefs were designed in as part of the PTT body housing to ensure cable stability and deflect concerns of cables / wiring becoming disengaged and or pulled from the housing. The PTT actuation switch is shrouded to avoid A/D issues. The Invictus body was designed to ergonomically fit easily in the palm of the hand while lining up the thumb for ease of depression and release against the switch. The 6 pin radio connector shown here is just a sample of the over 100 portable radios worldwide that Atlantic Signal builds interfaces for. We only use the aluminum housing 6 pin, perform all of the individual wiring/soldering and over-mold the entire assembly to add strength to the overall build while also preventing dust, dirt and water ingress. nan nan nan

Atlantic Signal HARRIS PRC-163 dual band cabled radio connector assembly Atlantic Signal designed, developed and began manufacturing the PRC-163 nineteen pin Nemesis connector assembly in the Winter of 2017. Atlantic Signal interfaces to over 100 LE and Military radios worldwide This is the D Series PRC-163 Over-molded Radio Connector terminated at the opposite end with our custom designed 60 degree plug and play connector for our VIPER Series PTTs Twin Atlantic Signal PRC 163 Connectors without EUD Hard-Wired Atlantic Signal Invictus Push-to-Talk with our dual band PRC 163 connector with EUD Close up of the Atlantic Signal custom designed PRC 163 19 pin cabled connector with EUD Atlantic Signal custom designed EUD connector with adjustable rubber strap for keeping in place when not in use

A ruggedized, submersible, two-wire kit available for operators where wearing a headset or shoulder mic is not warranted. The Lo-Vis R23 was specifically developed for US Military applications where a less overt kit was required for specific operations. The speaker and microphone are both IP67 rated and built of blackened stainless steel. The circuitry housing of the Lo-Vis R23 is completely sealed, preventing dust, dirt and water ingress. Each of the kit's three cables are captured by extra long / flexible strain and stress reliefs. The Lo-Vis R23 features a stainless steel, rotating alligator clip on both the speaker and microphone assemblies. The coiled ear tube assembly is replaceable and was designed to allow for multiple styles of ear pieces and sizes. The Lo-Vis R23 features an Atlantic Signal designed and manufactured over-mold capturing the NEXUS 4 or 5 conductor male plug assembly.

Ruggedized, heavy duty, dual radio. lo-vis solution for the professional who is tired of inexpensive, cheaply made, poorly designed, non-tactical grade Lo-Vis / PSD comms. A ruggedized, submersible. dual radio. three wire kit available or operators where wearing a headset or shoulder mic is not warranted. The Lo-Vis R23 was specifically developed for the US Military for applications where a less overt kit was required for specific operations. The microphone and both speakers are IP67 rated and built of blackened stainless steel. The circuitry housing of the dual comm Lo-Vis R23 is completely sealed, preventing dust, dirt and water ingress. Each of the kit's four cables are captured by extra long / flexible strain and stress reliefs. The Lo-Vis R23 dual comm features stainless steel. rotating alligator clips on both speaker assemblies as well as the microphone assembly. The coiled, ear tube assemblies are replaceable and were designed to allow for multiple styles of ear pieces and sizes. The Lo-Vis R23 features an Atlantic Signal designed and manufactured over-mold capturing a Nexus 5 conductor male plug assembly.

Atlantic Signal Motorola APX coiled radio cable assembly Our most popular Motorola connector assembly for Law Enforcement portable radios - the APX. Atlantic Signal interfaces to over 100 LE and Military radios worldwide Side profile of APX connector with knurled radio connection screw Atlantic Signal Motorola APX coiled cable assembly interfaced to our INVICTUS single comm push-to-talk assembly. We offer all radio connectors in both plug & play and hard-wired versions

Atlantic Signal Motorola XTS coiled radio cable assembly Our third most popular Law Enforcement connector assembly - the Motorola XTS. Atlantic Signal interfaces to over 100 LE and Military radios worldwide Bottom, back view of the Motorola XTS connector depicting radio edge clip assembly Twin Motorola XTS coiled cable connector assemblies interfaced to our dual comm "SF" model push-to-talk. We offer all of our radio connectors in both plug & play and hard-wired versions

the world's first all-n-one
hi/lo impedance ics cable
The world's first and only all-in-one hi/lo impedance ICS cable. Designed exclusively by Atlantic Signal for our 21GC communications suite and Aries push-to-talk. No longer a need to carry both a high and low impedance ICS cable and wondering when you get on a bird, which cable you need in order to communicate through the ICS. The Nightstalker features a surface-mounted, user interface, depression button to switch between high and low impedance settings. Patent pending.

The Revolution-X™ (aka REV-X™) was the brainchild of a US Military Special Operations client desiring a headset that could provide two forms of radio receive audio, having no over-the-ear cups which, in turn, could provide ventilation and personal situational and directional awareness on demand, and could be exposed in up to 5 meters of salt/freshwater submersion for up to 5 hours, all of which could be worn comfortably under a helmet for extended periods of time. This tall demand signal resulted in a complete re-set of how a tactical headset should be designed and perform - all further complicated with an above-industry standard expectation related to water exposure and submersion. The complicated nature of the REV-X™ resulted in a near 3-year trial and error development project with multiple iterations being jumped, swam and put through a variety of ground-based operations by the client.

Atlantic Signal THALES PRC-148R maritime cabled radio connector assembly Atlantic Signal designed, developed and manufactures the over-mold assembly of the maritime PRC-148 radio connector. The long "bullet-style" over-mold provides ample room for soldering of individual wires while adding extra strength and support for the cable assembly. Atlantic Signal interfaces to over 100 LE and Military radios worldwide In house wiring and over-mold control quickens delivery to customers versus waiting for the connector supplier to perform those tasks Shown - our D Series PRC-148 R maritime plug & play cable assembly designed and built initially for Naval Special Warfare's DOMINATOR II comms suites. We can also build the assembly hard wired to any and all of our other push-to-talk options nan nan nan

Atlantic Signal AVON Mask Comms Cable Kit for the C50, M50, FM53 & FM54 protective masks. Our kit is the only AVON mask adapter designed to disable your headset's microphone to avoid the negative impact of environmental noise outside the mask when transmitting We developed the AVON Comms Cable Kit at the request of a representative of USSOCOM originally for the AVON FM53 mask. The specific request was to develop and deliver a cable kit that interfaces to the mask's ECP (electronic communications port) and when connected to a headset - the kit would disable the operator's headset boom mic - only using the microphone inside the mask, directly in front of the mouth. This allows an operator, when wearing an AVON mask, boom mic headset and our cable kit - to literally whisper when transmitting in an even extremely high noise ambient environment because none of the noise in his surroundings is being transmitted from the headset boom mic positioned outside the mask Pictured - 2 pin adapter cable built to interface to the AVON masks's electronic communications port built into the front of each model of AVON mask Custom over-molded NEXUS female jack assembly - your headset down lead connects here. Over-mold features a TPE cap assembly to protect the interior of the female Nexus assembly when not in use. Custom over-molded male, 5 conductor, Nexus plug assembly designed to connect directly into your push-to-talk nan nan

Atlantic Signal developed, designed and manufactured DOD ICS cable assembly Originally developed in 2011 with the assistance of the Federal Bureau of Investigation Special Operations teams. This cable is traditionally used by DOD clients utilizing air assets. The custom circuitry, developed by Atlantic Signal, inside the over-molded Nexus connector - reads the ICS impedance levels and adjusts the headsets' performance accordingly The housing shown in the photo depicts the larger than average over-sleeve surrounding the Nexus plug - this contains the custom DOD asset compatible circuitry The plug and play design of the Atlantic Signal DOD ICS cable - allows an operator to stow the cable when not in use. When connected to the appropriate PTT housing, the custom over-molded connector stands at a 60 degree angle for ease of access with a gloved thumb and forefinger. Further, when connected to a PTT box, the connector is angled 45 degrees in toward the body armor for a tight fit nan nan nan

Atlantic Signal designed, developed and manufactured General Aviation ICS cable assembly Originally developed in 2011 with the assistance of the Federal Bureau of Investigation Special Operations teams. This cable is traditionally used by non-DOD clients utilizing air assets. The custom circuitry, developed by Atlantic Signal, inside the over-molded Nexus connector - reads the ICS impedance levels and adjusts the headsets' performance accordingly The housing shown in the photo depicts the larger than average over-sleeve surrounding the Nexus plug - this contains the custom General Aviation asset compatible circuitry The plug and play design of the Atlantic Signal General Aviation ICS cable - allows an operator to stow the cable when not in use. When connected to the appropriate PTT housing, the custom over-molded connector stands at a 60 degree angle for ease of access with a gloved thumb and forefinger. Further, when connected to a PTT box, the connector is angled 45 degrees in toward the body armor for a tight fit nan nan nan

DUALSTREAM PTT CONTROLLER
DUAL TALK GROUP CONTROLLER
Enhanced Communications For The Connected Operator

The DualStream PTT Controller streamlines tactical communications, enhancing situational awareness with dual PTT buttons and L/R audio channel output for seamless talk group management. Designed for rapid, intuitive operation, it features dedicated volume controls, a glove-friendly 16-position talk group selector with audio prompts, and rugged IP67-rated construction for reliability in the harshest environments. A rotatable MOLLE clip ensures easy access for both left- and right-handed users. With zero programming required, and minimal training, the DualStream PTT Controller keeps operators mission-ready and focused on what matters most—staying connected.

KEY FEATURES

• 16-position talk group selector knob allows for rapid assignment of talk groups
• Independent Left/Right audio output with voice prompts for improved situational awareness
• Dual PTT buttons for seamless switching between two talk groups or simultaneous keying
• Dedicated volume controls for instant audio adjustment
• Glove-friendly interface for use in extreme conditions
• Rugged construction and IP67-rated for immersion and all-weather durability
• Designed for use with all Silvus StreamCaster MANET radios
• Compatible with a variety of headsets from leading manufacturers, including Atlantic Signal and OPS-CORE, with planned support for Falcom, Invisio, and OTTO

More Info

Outpace the Threat.
Achieve RF Spectrum Overmatch
As a software licensable extension of Silvus' battle-proven MN-MIMO waveform, Spectrum Dominance is an ever-expanding suite of Low Probability of Intercept / Low Probability of Detection (LPI/LPD), Anti-Jamming EW resiliency, and Advanced Threat Protection capabilities – providing secure and protected communications without sacrificing performance. Together, they enable StreamCaster MANET radios to thrive in congested and contested environments – empowering their operators with robust tactical communications solutions to achieve RF spectrum overmatch in any operational environment.
Spectrum Dominance 2.0 delivers the next evolution of this advanced suite of capabilities that takes a layered approach to EW defense – forcing an adversary to penetrate all layers to disrupt your communications. Comprised of Core and Expansion Features, it offers operational flexibility – allowing features to be deployed independently or in combination to enhance mission performance. Silvus is the only tactical MANET provider that delivers Spectrum Dominance without sacrificing range, throughput or robustness – even under electronic attack.
LPI/LPD: Delay or Deny Detectability
MANET Power Control (MAN-PC)
An LPD feature, MAN-PC minimizes the RF footprint of Silvus StreamCaster MANET radios – dynamically throttling to the minimum amount necessary to maintain network connectivity.
Wake On Wireless
Enables StreamCaster MANET radios to receive data without emitting control traffic to gather intel without revealing position. Radios in Stealth Mode can be activated via Wake on Wireless, either remotely or locally.
AJ: Mitigate EW Attack
MANET Interference Avoidance (MAN-IA)
StreamCaster MANET radios automatically scan and monitor the RF spectrum for interference across multiple user-defined channels. At the onset of jamming, MAN-IA moves the entire network to the cleanest frequency without user intervention.
MANET Interference Cancellation (MAN-IC)
StreamCaster MANET radios automatically perform real-time interference monitoring. At the onset of jamming, MAN-IC employs sophisticated spatial signal processing techniques to nullify the offending interfering signal.
Dual Frequency Link
An innovative, Anti-Jamming technique for distributed operations, Dual Frequency Link enables StreamCaster MANET radios to Transmit on one frequency channel, and Receive on a different frequency channel.
ATP: Waveform Resiliency
MANET Protected Waveform (MAN-PW)
When MAN-PW is enabled, the MN-MIMO waveform is hardened for increased resiliency.
More Info

NEXT GENERATION MANET RADIO PERFORMANCE
The ultra-slim SM5200 delivers the performance of a 2×2 MIMO radio in a rugged, low-profile design. It easily detaches from StreamCaster NEXUS via a quick-release, snap-lock system enabling flexible standalone radio operations. Powered by Silvus' battle-proven MN-MIMO waveform, the SM5200 is capable of linking hundreds of nodes through a scalable mesh network that's natively compatible with 4000-series StreamCaster MANET radios. Dual PTT provides precise audio control, while a dedicated RoIP interface bridges LMR systems into the Silvus mesh network. With available access to Spectrum Dominance 2.0 – an ever-expanding suite of LPI/LPD, Anti-Jamming and Advanced Threat Protection capabilities – the SM5200 ensures secure, resilient connectivity in contested environments without sacrificing performance.
KEY FEATURES:

• Up to 2 Watts output power (4W effective, thanks to TX Eigen Beamforming)
• Up to 100 Mbps Data Throughput
• MN-MIMO waveform: 550+ node scalability
• Single/Dual Band Frequency Options
• Dual PTT with Independent L/R audio channels
• Dedicated RoIP interface
• I/O Interfaces: Ethernet, USB, RS232
• Advanced Encryption – AES 256, FIPS 140-3

More Info

The AN/VRC-111 20 Watt Vehicle Adapter Amplifier (VAA) is a COTS/NDI, electrical and mechanical fixture combining the functionality of the battle-proven AN/PRC-148 Multiband Inter/Intra Team Radio (all MBITR and JEM configurations) and Vehicle Adapter into a system that offers an alternative to existing SINCGARS vehicular installations. The AN/VRC-111 20 Watt VAA consists of two AN/PRC-148 radios, two Vehicle Adapters, and an electrical/mechanical interface tray that facilitates direct installation into military vehicles outfitted with SINCGARS Installation Kits (IKs) utilizing Mounting Base MT-6352. The 20 Watt VAA, when installed in combination with a SINCGARS IK, enables power amplified (20 Watt per Vehicle Adapter), co-site filtered, SINCGARS performance as well as operation with the SINCGARS IKs audio devices and vehicular intercom systems such as the VIC-3. Rapid, cable-free radio dismount in less than 2 seconds is enabled with single push-button action. Capability beyond basic SINCGARS functionality is available through replacement of the standard antenna provided in the SINCGARS IK with a readily available COTS, 30-512 MHz broadband antenna. The VAA is rugged, constructed to withstand harsh weather conditions and ballistic shock. FEATURES:

• Contiguous 30-512 MHz coverage
• 20 W RF Output (50 W version also available)
• Installs onto existing MT-6352 mounting tray
• Powered through existing SINCGARS mounting tray
• No additional RF or power cable installation required
• Compatible with existing SINCGARS vehicle antennas (provided separately)
• Supports and maintains all functionality of all configurations of the AN/PRC-148 Radio, including MBITR and JTRS Enhanced MBITR (JEM)
• Full configuration: consists of two AN/PRC-148 radios, two Vehicle Adapters, and Interface Tray (also available without AN/PRC-148 radios)

Thales - ClearConnect Vehicle Package (C2VP) is a low-risk data communications solution that interfaces with robotic air, ground, and water-borne vehicles to generate and distribute critical, real-time assured communications across infantry platoons and leadership for fast, reliable decision-making that reduces risk to soldiers and improves mission effectiveness. C2VP also features technology insertions that demonstrate the ability to host robotic Artificial Intelligence (AI) Virtual Machines (VMs); onboard encoding and transcoding technology to move streaming video through the network; a user interface and network health API; and an LPI/LPD transport layer. These insertions will add valuable combat multipliers to the data/communications architecture, moving the system of systems architecture in support of the dismounted infantry platoon. The best way to increase the lethality, mobility, protection, situational awareness (SA), endurance, persistence, and depth of the dismounted infantry platoons is to implement the necessary data/communication architecture on robotic platforms, and enable their sensor packages to integrate with and transport data/communications that survey and report on areas of interest. This reliable, real-time data will reduce risk to the soldier and provide a force multiplier to combat operations. With both LOS and BLOS, Network CFT-based Integrated Tactical Network (ITN) solutions, Thales provides an architecture that can support the infantry platoon across all operational environments, and mitigate terrain features with the ability to leverage the tactical LOS network and BLOS transport layers.

Expeditionary Mission Command:

• Open architecture communication network, lightweight, mobile, and vehicle agnostic
• Automated P.A.C.E with multi-layer transport: LOS, HCLOS, BLOS
• Scalable system from brigade to platoon level: SBU and SAB enclaves
• 10-level user interface with health and network management API
• 2Ð15 hours of silent watch run time

Data Communications Architecture for Robotic Platforms:

• ITN based architecture built for multi-domain operations
• Payload and sensor aggregation for network transport
• LPI, LPD, and anti-jam capabilities
• Transportability of any layer 3 IP based data
• Integrated video encoding and transcoding

The PRC6809 Non-Type 1 MBITR is part of the AN/PRC-148 family of radios. Based on the combat-proven AN/PRC-148 MBITR, the PRC6809 Non-Type 1 MBITR provides unprecedented interoperability with existing military and commercial legacy radio systems. With software upgradeability, future operation with the next generation of communications equipment is ensured. The PRC6809 Non-Type 1 MBITR can be utilized with the full set of AN/PRC-148 system components for mounted and dismounted operations.

• Contiguous 30-512 MHz coverage
• Selectable RF output power (0. 1, 5. 0 Watts)
• DES/Type III and AES/256-bit encryption options
• 2M/20 immersible
• Compliant with the Universal Battery Charger (UBC) family of tactical chargers

The Mission Module concept integrates Thales' AN/PRC-148 JEM handheld radios and Full Motion Video Receivers into an FMVR Mission Module form factor. This single device approach reduces the size and weight burden of the warfighter and provides the ability to receive Full Motion Video from ISR assets on the fly as the mission dictates. Users currently carry multiple radios to maintain access to legacy narrowband waveforms and wideband Full Motion Video downlinks from assets such as UAVs. As an 'add-on" module to the currently fielded AN/PRC-148 radios, the FMVR-MMs eliminate the need to introduce a separate and dedicated FMV ground terminal receiver and provide mission-specific extended capability to the user.

The Tactical Repeater is a suitcase configuration that houses two vehicle adapters functioning together as a repeater. It integrates AN/PRC-148 and AN/PRC-148 Vehicle Adapter designs, significantly increasing the range performance of VHF/UHF radio net operations when extended radio linkage is required or where obstacles are present that normally preclude line-of-sight communications.

• Contiguous 30-512 MHz Coverage
• 20 Watt RF Output
• Bi-directional Operation for Simplex Net Linking
• Rugged Transport Case
• Dual Antenna Configurations
• Selectable AC and DC Power Input Rechargeable Backup Battery.

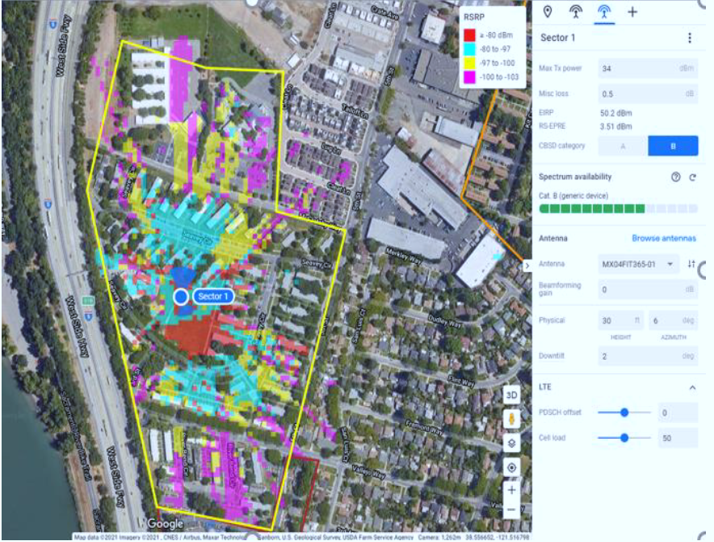

Fixed wireless and microwave solutions provide broadband connectivity where fiber is unavailable, slow to deploy, or too costly. Use cases include primary access, backup links, remote site coverage, range connectivity, ports, warehouses, and temporary operations.
