Home  > Envision Technology - RAIL Rail-Mounted Aiming/Illumination Laser
Envision Technology - RAIL Rail-Mounted Aiming/Illumination Laser
Envision Technology - RAIL Rail-Mounted Aiming/Illumination Laser
Envision Technology - RAIL Rail-Mounted Aiming/Illumination Laser

Envision Technology - RAIL Rail-Mounted Aiming/Illumination Laser

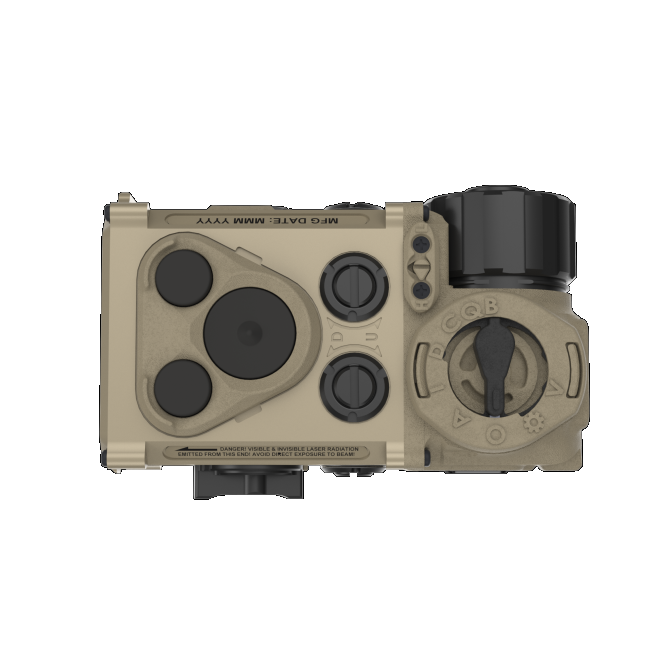

The Rail-mounted Aiming and Illumination Laser (RAIL) provides visible and IR targeting capability in a compact SWaP-optimized design. brings a weapon-mounted aiming and illumination capability to the user in an exceptionally small form factor. The RAIL contains an integrated visible aiming laser (Green or Red), NIR aiming laser, NIR illumination laser (VCSEL), and 180° NIR wide-angle LED illuminator for confined spaces or Close Quarters Battle (CQB). The NIR illumination laser has a quick adjust beam divergence capability and is independently adjustable from the co-aligned aiming lasers. All lasers have user-adjustable power settings to support various mission needs. The system is powered by a single CR123 battery and mounts to a standard MIL-STD-1913 rail.
Overview
USER BENEFITS
  • Ultra-Lightweight & Balanced: Weighs under 6 oz to maintain weapon balance in high-mobility and CQB environments.
  • All-in-One Laser Capability: Combines red or green VIS laser, IR aim laser, IR illuminator, and wide-angle NIR LED flood in one compact unit.
  • Quick-Adjust Laser Intensity: Instantly adapt aiming or illumination power to match distance or lighting conditions.
  • 180° Wide-Angle IR Flood: Integrated NIR LED provides full-scene visibility for confined spaces and room entries.
  • Personalized Laser Control: VIS and CQB override buttons are user-configurable for instinctive activation under pressure.
  • Independent IR Illuminator Tuning: Adjust beam divergence and location without affecting aiming lasers.
  • Fast-Access Controls: Easy to use buttons and rotary dial ensure quick operation under stress.
  • Expandable Mode Selector: Seven-position dial includes open slots for future feature upgrades.
  • OLED Display with Dimming: Manual brightness control and auto-dimming sensor for day/night adaptation. Display can be disabled during operation.
  • Built for Glove Use: Aptly designed buttons for confident manipulation with gloves.
  • Mounting: MIL-STD-1913 rail interface to mount to a wide variety of weapon platforms.
  • Simple Power Source: Runs on a single CR123A battery for reliable field operation.
